Automation Blueprints (n8n Logic)

The system's "Surveillance" and "Human-in-the-Loop" capabilities are powered by n8n. This document breaks down the logic inside the n8n_workflows/Refined_Alert_System.json blueprint.

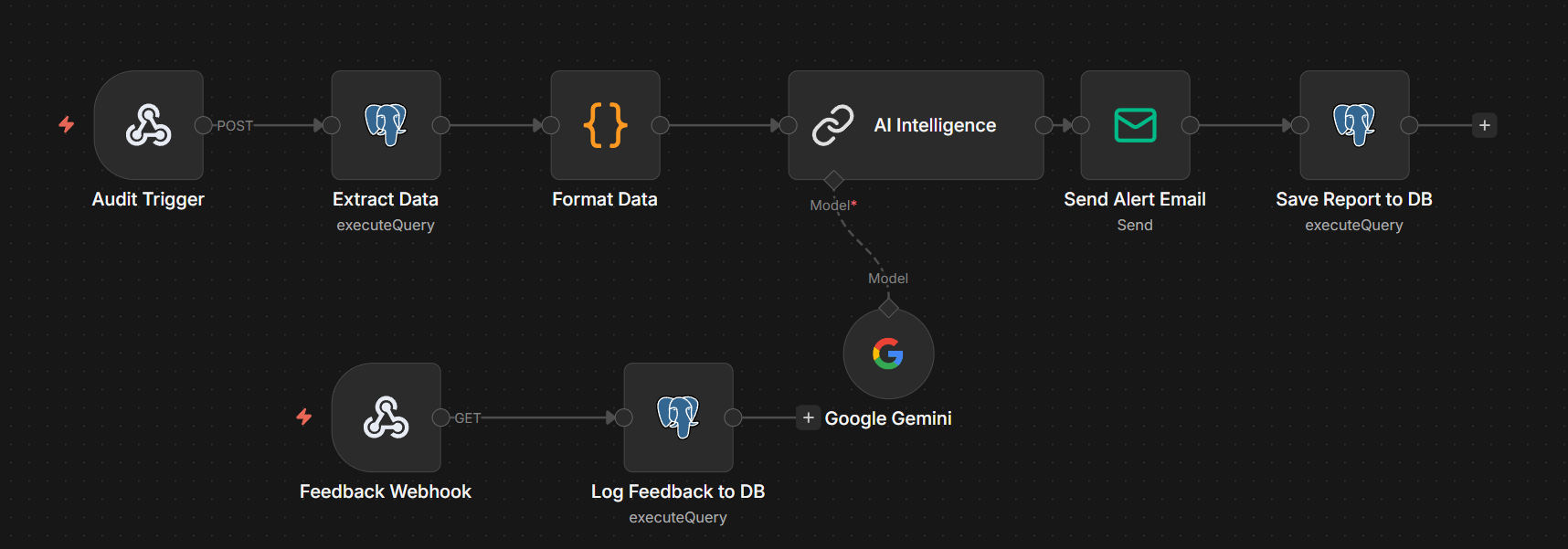

alt text

High-Level Logic Flow

The workflow is divided into two main execution paths:

  1. The AI Risk Audit: Pulls data → Asks Gemini → Sends Email → Saves Report.
  2. The Feedback Handler: Receives Link Click → Writes Confirmation to DB.

Path 1: The AI Risk Audit (Trigger-Based)

1. Audit Trigger (Webhook)

  • Role: Listens for a POST request from the Streamlit "Run AI Audit" button.
  • Production URL: http://localhost:5678/webhook/audit-trigger

2. Postgres Data Pull

  • Query: Selects the top 10 states from v_critical_alerts for the latest date.
  • Why: By using a SQL View, we keep the n8n logic simple. If we want to change the "definition" of a crisis, we update the SQL View, not the n8n node.

3. Gemini AI Analysis (The Intelligence)

  • Model: gemini3.0-flash or any other as required is available.
  • Role: Converts the raw JSON numbers into a structured HTML situation report.
  • Key Instruction: Forces the model to return raw HTML with inline CSS, ensuring the report looks perfect in both Gmail and the Streamlit Portal.

4. Save & Send (Dual Destination)

  • Email Node: Dispatches the briefing to the Chief Medical Officer.
  • Postgres Write Node: Saves the HTML string into the latest_ai_report table so the Streamlit app can display it.

Path 2: The Feedback Loop (Human-in-the-Loop)

This is what makes the system "Smart" over time.

1. Feedback Webhook

  • URL: http://localhost:5678/webhook/covid-feedback
  • Mechanism: The AI inserts two links in the email:
    • ...status=Confirmed
    • ...status=False Positive

2. Logging the Truth

When a stakeholder clicks a link, n8n extracts the status, state, and date from the URL parameters and inserts them into the alert_feedback table.

Credential Management

To run this blueprint, you must configure two credentials in n8n:

  1. Postgres Credentials:

    • Host: db (internal Docker name)
    • Database: postgres
    • User: postgres
    • Password: password123

  2. Google Gemini Credentials:

    • Requires a Google AI API Key from the Google AI Studio.

Troubleshooting the "Audit"

If the audit fails to generate a report:

  • Check the Postgres Node: Ensure the app container has finished running the ETL (Gold layer must exist).
  • Check Gemini Quotas: Ensure your API key is active and hasn't hit its free-tier rate limit.
  • Inspect n8n Executions: Use the "Executions" tab in n8n to see exactly which node failed and read the error message.
